Additional information
| Shade | 5%, 15%, 25%, 35% |
|---|---|
| Roll Size | 60" x 10ft, 60" x 25ft, 60" x 50ft, 72" x 10ft, 72" x 25ft, 72" x 50ft, 60" x 100ft, 72" x 100ft |
Architectural
Carbon DR
HITEK Carbon DR is a dual reflective window film for flat glass, with a reflective exterior and non-reflective interior tone. Available in four shades, it rejects up to 93% of infrared heat and 99% of UV rays.
99% UV Block
Heat Rejection
Glare Reduction
Scratch Resistant
2 mil
Two ply carbon ceramic construction.
By shade
Compare measured solar performance below.
Neutral inside
Lower interior reflectivity supports views.
Dry adhesive
Activated with installation solution.
01 The installed look
Your shade. Both sides.
Choose a shade to update the glass, then move the slider between outside and inside.
Shade preview
Choose a shade. See the difference.
Tap a shade to change the glass in both views.
Select a shade to preview.
Illustrative shade comparison. Color, light transmission and reflection vary with the glass and lighting. Confirm the exact finish with a physical sample.
Outside view
A reflective charcoal exterior that gives the facade a consistent solar control finish.
Open full imageInside view
A neutral interior tone with lower reflection than the outside face, supporting the view out.
Open full imageEvaluate the exterior appearance and outward view under the project’s actual lighting.
Illustrative finish preview. These daylight views show the intended appearance, not an exact shade simulation. Actual results vary with the film, glass and lighting. Confirm with a physical sample. Reflective privacy depends on brighter light outside; interior lighting can reverse visibility at night.
02 The product
Solar control. A neutral interior.
HITEK Carbon DR combines a reflective exterior with a neutral interior tone for architectural solar control. Four shades let installers balance light, glare reduction and heat rejection for homes and commercial properties. The film uses carbon ceramic technology, a dry adhesive system and a scratch resistant surface. Its lower interior reflectivity supports outward views, while reflective privacy remains dependent on the relative lighting on either side of the glass.
03 Performance & construction
Compare the performance.
The numbers behind your next recommendation.

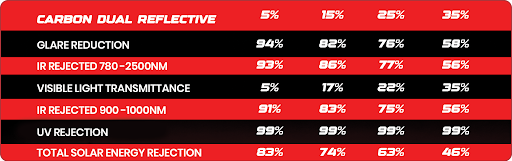

Carbon DR performance
Construction
2 ply
A reflective exterior and a neutral interior tone for comfortable outward views.
Product specifications
| Construction | 2 ply |
|---|---|
| Thickness | 2 mil |
| Adhesive | Dry |
04 Applications
The right fit. A considered install.
Professional application guidance
Application guidance
Review HITEK’s film to glass compatibility chart before installation. Select the product for the actual window glass, exposure and project. Reflective privacy depends on lighting conditions.

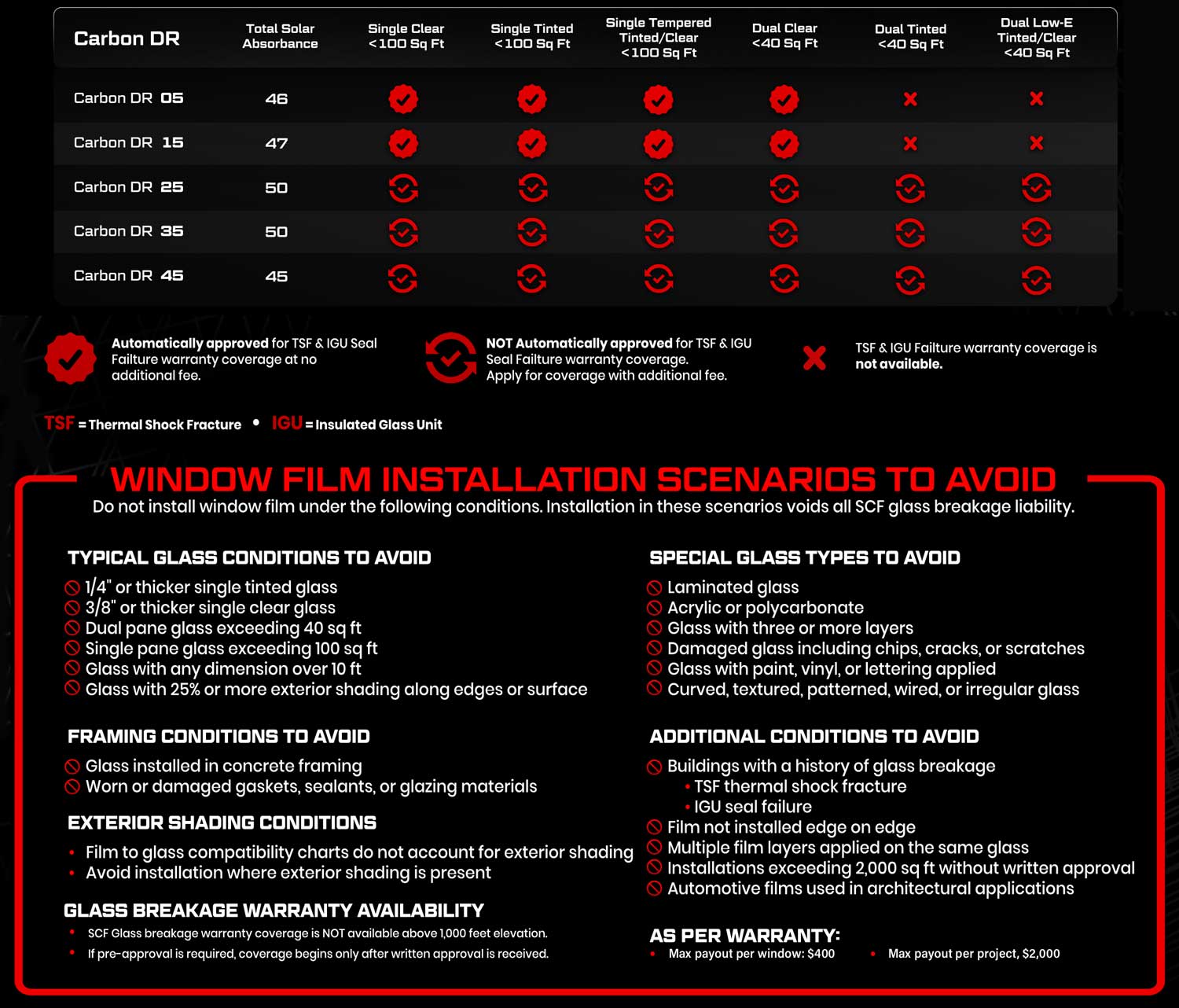

FILM TO GLASS
Carbon DR compatibility chart
View Carbon DR film-to-glass guidance
Original HITEK chart section for Carbon DR. Compare the listed shades and glass types, then read the symbol key and installation exclusions below.
Read the chart symbols correctly
- Filled check: automatic TSF and IGU seal-failure warranty coverage at no additional fee.
- Circular check: not automatically approved; apply for coverage with an additional fee.
- X: TSF and IGU failure warranty coverage is not available.
TSF means Thermal Shock Fracture. IGU means Insulated Glass Unit. These symbols describe the chart’s warranty eligibility; installation exclusions still apply.
Installation exclusions and glass breakage terms
Read these conditions together with the film section. Use the full PDF for the complete original chart.
Source: HITEK Film to Glass Installation Chart, downloaded October 16, 2026. The original chart artwork and conditions are preserved.
05 Questions, answered
Before you choose.
What will Carbon DR look like after installation?+
A reflective charcoal exterior with a neutral interior tone. Evaluate the exterior appearance and outward view under the project’s actual lighting.
How should I use the outside/inside comparison?+
Drag the handle or choose Outside, Split view or Inside. These are illustrative views of the intended finish, not a measurement. Compare a sample on your glass; lighting changes reflectivity and privacy.
What warranty information should I check?+
Confirm the current written period with HITEK. Review eligibility, exclusions, care and claim requirements in the Warranty information section. Your issued written warranty governs.
How do I get Carbon DR installed?+
Use Find an Installer to request help for your project. Ask your installer to confirm the selected product, finish, application suitability and warranty before installation.
