Additional information
| Shade | 0%, 2%, 3%, 5%, 8%, 10%, 15%, 20%, 25%, 30%, 35%, 38%, 40%, 45%, 48%, 50%, 60%, 60, 70%, 74%, 80%, 86% |
|---|---|

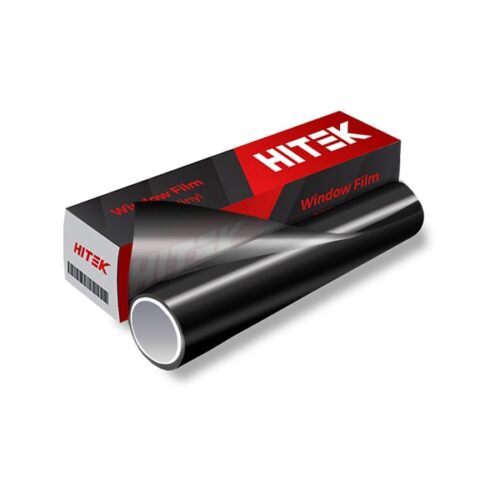

| Roll Size | 10" X 100ft, 24" x 100ft, 36" x 100ft, 40" x 100ft, 60" x 100ft |
62% IR
At 5% VLT over 780–2500 nm.
1.5 mil
Carbon nanoparticle technology.
Signal friendly
Designed without electronic interference.
Lifetime
Automotive program preview. See warranty details.
01 The installed look
See the finish in place.
Neutral carbon film appearance with an understated glass finish.
HITEK Carbon IR
Neutral charcoal
- Appearance
- Neutral carbon film appearance with an understated glass finish.
- Installed on
- Automotive glass
- Before you choose
- Shade and lighting affect how dark the installed glass appears.
Illustrative finish preview. Actual appearance varies with the selected product, shade, surface and lighting. Confirm with a physical sample.
02 The product
Carbon comfort. A neutral finish.
Carbon IR combines an understated appearance with a 1.5 mil construction designed for heat control without metalized-film signal interference. Published infrared rejection is 62% at 5% VLT across 780–2500 nm. Compare the exact shade and test conditions when choosing.
03 Performance & construction
Compare the performance.
The numbers behind your next recommendation.
SHADE BY SHADE
Carbon IR performance
Compare every published shade, or select one to see its measurements.

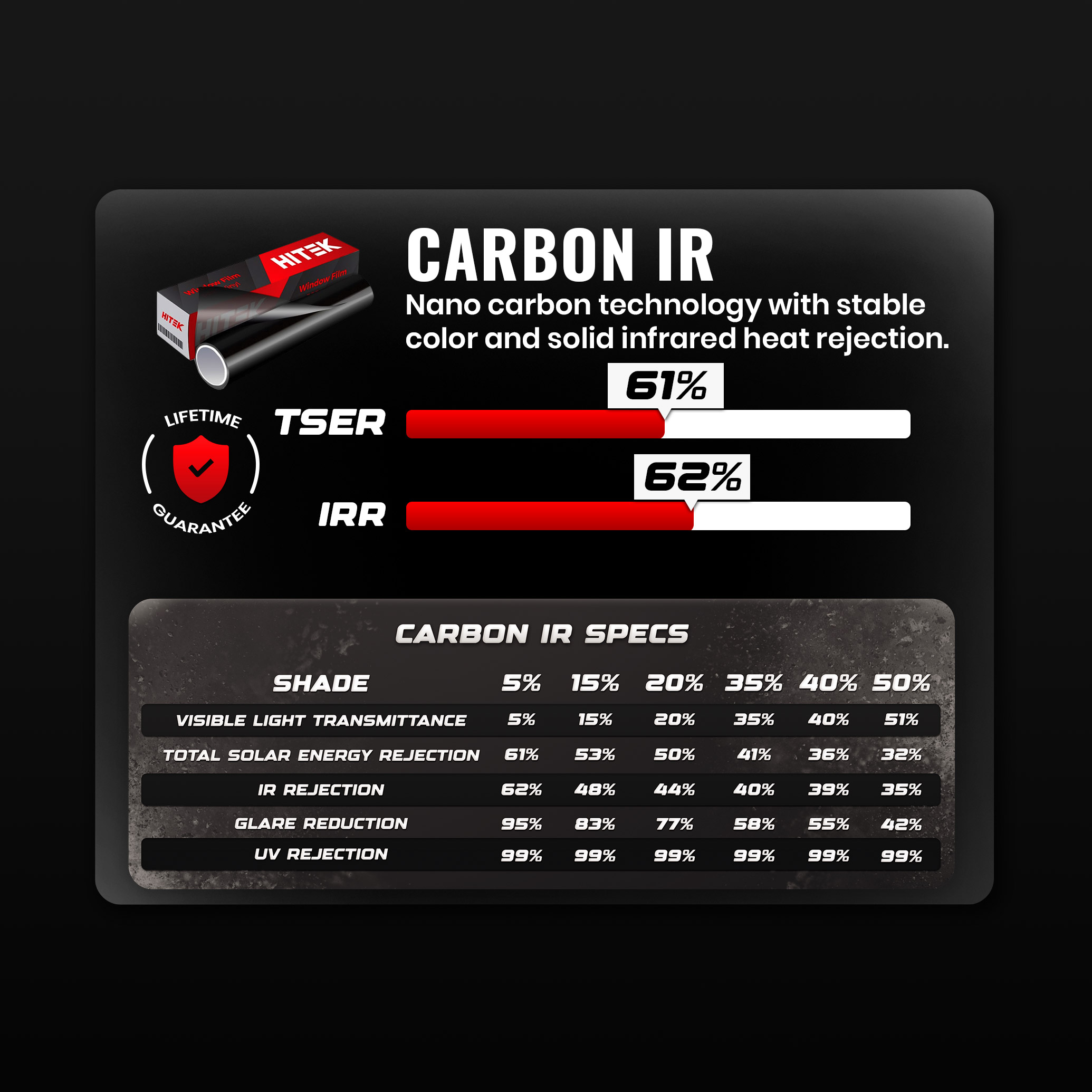

| Shade | Measured VLT | TSER | IR rejection | Glare reduction | UV rejection |
|---|---|---|---|---|---|
| 5% | 5% | 61% | 62% | 95% | 99% |
| 15% | 15% | 53% | 48% | 83% | 99% |
| 20% | 20% | 50% | 44% | 77% | 99% |
| 35% | 35% | 41% | 40% | 58% | 99% |
| 40% | 40% | 36% | 39% | 55% | 99% |
| 50% | 51% | 32% | 35% | 42% | 99% |
VLT · visible light transmittedTSER · total solar energy rejectedShade names and measured VLT may differ.
The product description specifies 780–2500 nm for IR rejection at the 5% shade. The chart does not state separate test conditions for the remaining shades. Compare films under equivalent test conditions.
No chart measurements are published for 2%. Confirm specifications and availability with HITEK.
HITEK specification source
Open the original HITEK chart ↗ · Checked October 20, 2026.
Catalog reference: 35f85e6c-d58d-4b15-9611-cb1d54ca22e0
observed_at:
Technology
Carbon nanoparticles
A neutral finish with carbon nanoparticle technology.
Product specifications
| Technology | Carbon nanoparticles |
|---|---|
| Thickness | 1.5 mil |
| Appearance | Neutral |
| IR rejection | 62% over 780–2500 nm at 5% shade |
IR rejection measured at a single wavelength is not the same as total solar energy rejection. Use the shade specific chart when comparing films.
04 Applications
The right fit. A considered install.
Professional application guidance
Application guidance
Select the film and shade for the vehicle, glass and applicable tint requirements. Confirm current roll sizes and availability in the HITEK dealer store. Follow the product’s installation and care guidance.
05 Questions, answered
Before you choose.
What will Carbon IR look like after installation?+
Neutral carbon film appearance with an understated glass finish. Shade and lighting affect how dark the installed glass appears.
Does darker tint always reject more heat?+
Shade and heat performance are different properties. Compare the published performance for the exact film and shade. Visible light transmission describes brightness; it does not measure total heat rejection.
What warranty information should I check?+
Lifetime. Automotive program preview: final policy wording and effective date are pending. Your issued warranty governs your installation; this preview does not change existing coverage.
How do I get Carbon IR installed?+
Use Find an Installer to request help for your project. Ask your installer to confirm the selected product, finish, application suitability and warranty before installation.
